JMR Aquapaint RGBW "Donut" LED Lighting System. |
| |
Technique |
|
| |
|
Aquapaint RGBW "Donut" is the most powerful LED lighting system for underwater applications.

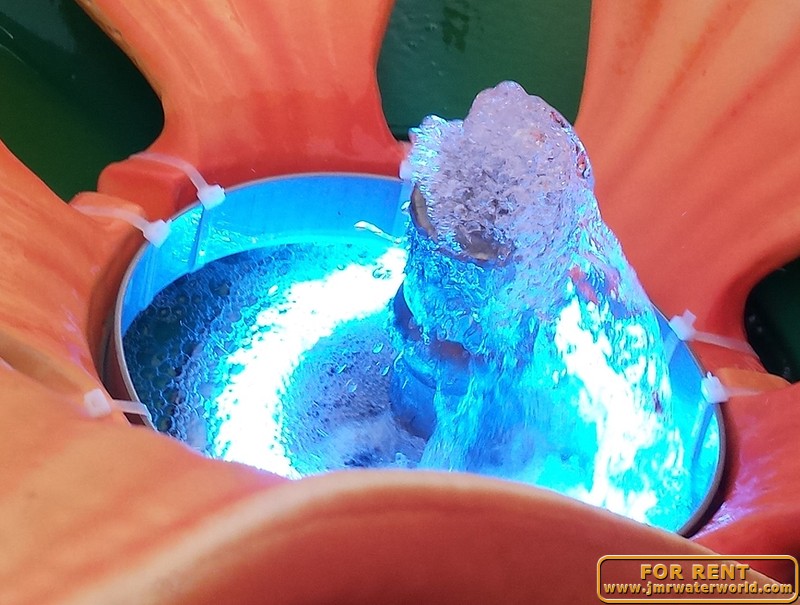

Because of the "donut" design the Aquapaint RGBW is the perfect solution for the illumination of water fountains, this design allows a nozzel through the middle of the unit.
The system is the result of many years of experience in water shows, lighting, entertainment and involved technologies.
The rugged lamp, with it’s fully watertight enclosure made of solid brass, uses the best power LED’s available today, ensuring the highest possible luminous flux per watt.
Together with a versatile 4 channel LED driver, an optimum combination is formed, that offers a safe and robust lighting solution for even the most demanding situations.
The JMR Aquapaint RGBW "Donut" LED Lighting System, which is in-house developed and produced, is now also for rent! |
| |
|
| |
|
| |
|
| |
|
|
| |
|
|
| |
|
Technical specifications Aquapaint RGBW "Donut" LED lamp:
|
| |
 |
| LED type: |
: |
Cree XP-E2 |
| red leds |
: |
24 |
| green leds |
: |
24 |
| blue leds |
: |
24 |
| white leds |
: |
24 |
| temperature sensor |
: |
NTC 10k |
| luminous flux per color R/G/B/W |
: |
4000 / 6000 / 2500 / 5200 lm* |
| total luminous flux |
: |
17700 lm |
| total power consumption |
: |
310 Watt |
| radiation angle |
: |
10° (with standard narrow angle lenses) |

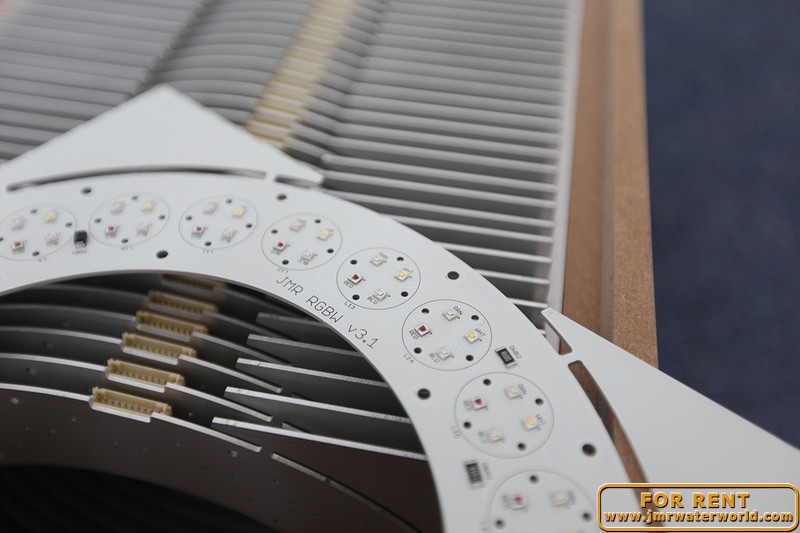

| lamp pcb material |
: |
metal core, white mask |
| lamp body material |
: |
brass |
| front screen material |
: |
high impact resistant glass |
| gaskets |
: |
silicon rubber |
| ingress protection |
: |
IP68 |
| size |
: |
Ø 300 x 55 mm / Ø 11.8 x 1.5 inch, central hole Ø 150 mm / Ø 5.9 inch |
| weight |
: |
8.1 kg / 17.8 lbs |
(* luminous flux is related to human eye sensivity to colors. Efficiency of blue leds is relatively higher than lum. flux values may suggest)
|
| |
|
Technical specifications Aquapaint RGBW "Donut" LED driver:
|
| |
|
| interface: |
: |
USB, isolated DMX |
| led driver type |
: |
switch mode, step down, constant current |
| microcontroller type |
: |
ARM |
| input voltage |
: |
24..50 volt DC |
| input voltage - output voltage |
: |
2..30 volt |
| maximum output current |
: |
4 x 2A |
| common output leds |
: |
0 volt |
| efficiency |
: |
> 95% |
| advised cooling capacity |
: |
Rth < 2°C/W |
| dimming resolution |
: |
4096 steps |
| dimming regulation |
: |
DC (no PWM), simulates slow halogen dimming |
| dimming curve |
: |
lineair or logarithmic |
| monitoring functions |
: |
driver and lamp temperature, output, under/overvoltage |
| hardware protection |
: |
ESD, supply voltage polarity. |
| DMX interface isolation |
: |
> 3kV |
| DMX protocol |
: |
DMX-512 |
| DMX channels |
: |
6 (color 1, 2, 3, 4, color mix, master brightness) |
| DMX offset address |
: |
programmable via DMX interface, with special software tool |
| DMX line termination |
: |
activated by jumper |
| extra functions |
: |
driver address finder, with special software tool |
| extra options |
: |
configuration via USB (only on request) |
| size |
: |
123 x 73 x 12 mm / 4.82 x 2.87 x 0.47 inch (bare PCB size, without enclosure) |
| |
|
|
|
| |
|
|
| |
|
|
|
|
