  Show productions JMR CO2 Wheel (exclusivity grants).
  Technique

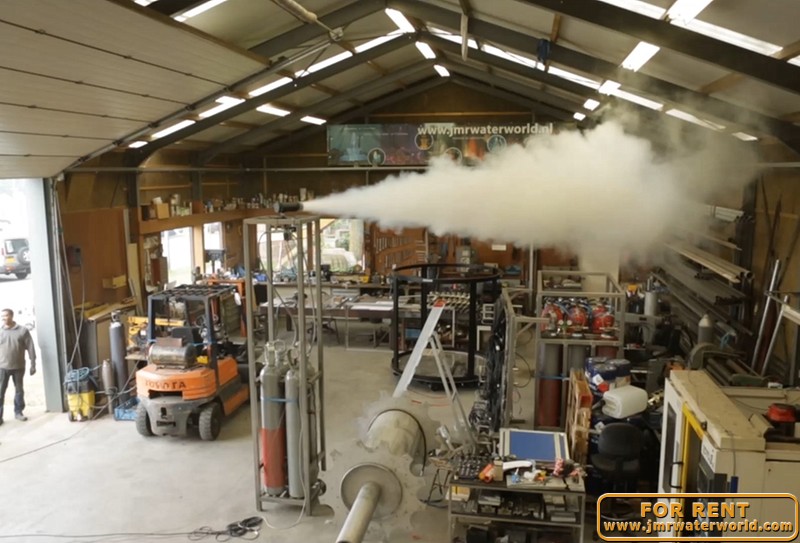

This unique DMX controllable JMR CO2 Wheel consists of an 8 meters (depending on humidity) long rapidly expanding CO2 gas cloud.
The position, direction and speed can be controlled by DMX.
Through linking several units via DMX it is possible that all CO2 Wheels react exactly at the same speed, direction and position.
Definitely an eye-catcher for your event.

This water show effect, which like all other in-house developed and produced JMR effects, is now also for rent!

Effects : positionable and turning (speed and direction) rapidly expanding gas cloud

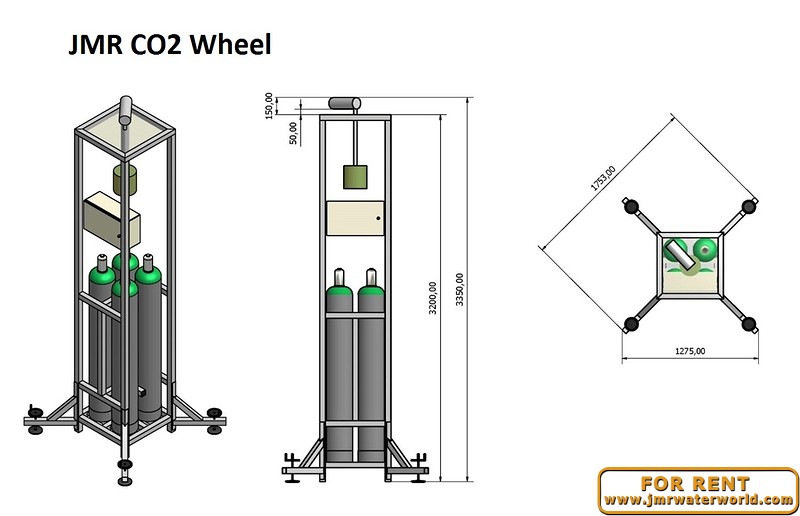

Dimensions construction : 1275 x 1275 x 3350mm (LxWxH)
Dimensions effect : 8 meter long gas cloud (depending on humidity)

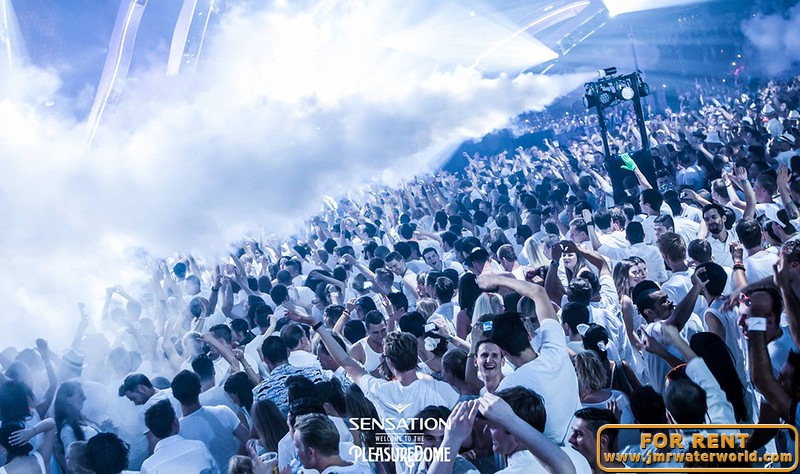

References a.o. : ID&T Sensation - Welcome to the Pleasuredome
















    Technical Specifications:

Length : 1275mm
Width : 1275mm
Height : 3350mm
Weight : 210 kg / 463 lbs (incl. 4 gasflessen)

Input : AC 230V ~50 - 60Hz
Output : AC 230V ~50 - 60Hz
Consumption : 300W

Input : Vloeibare CO2
Output : CO2 Gas
Consumption : 2 Kg/s (1.1 lbs/s)
